Steel Formwork

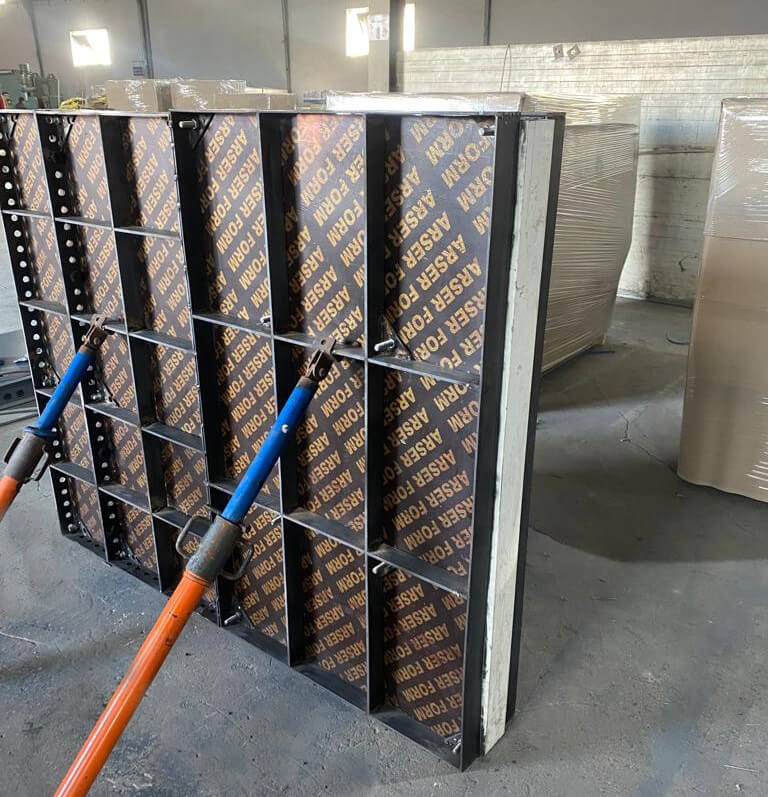

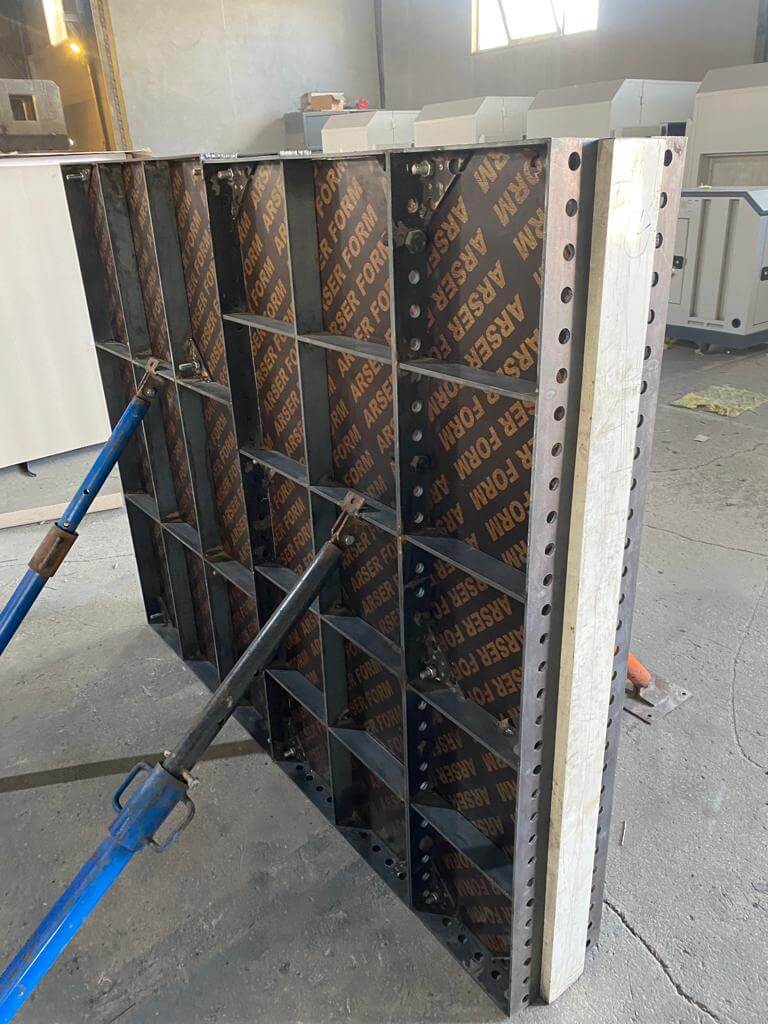

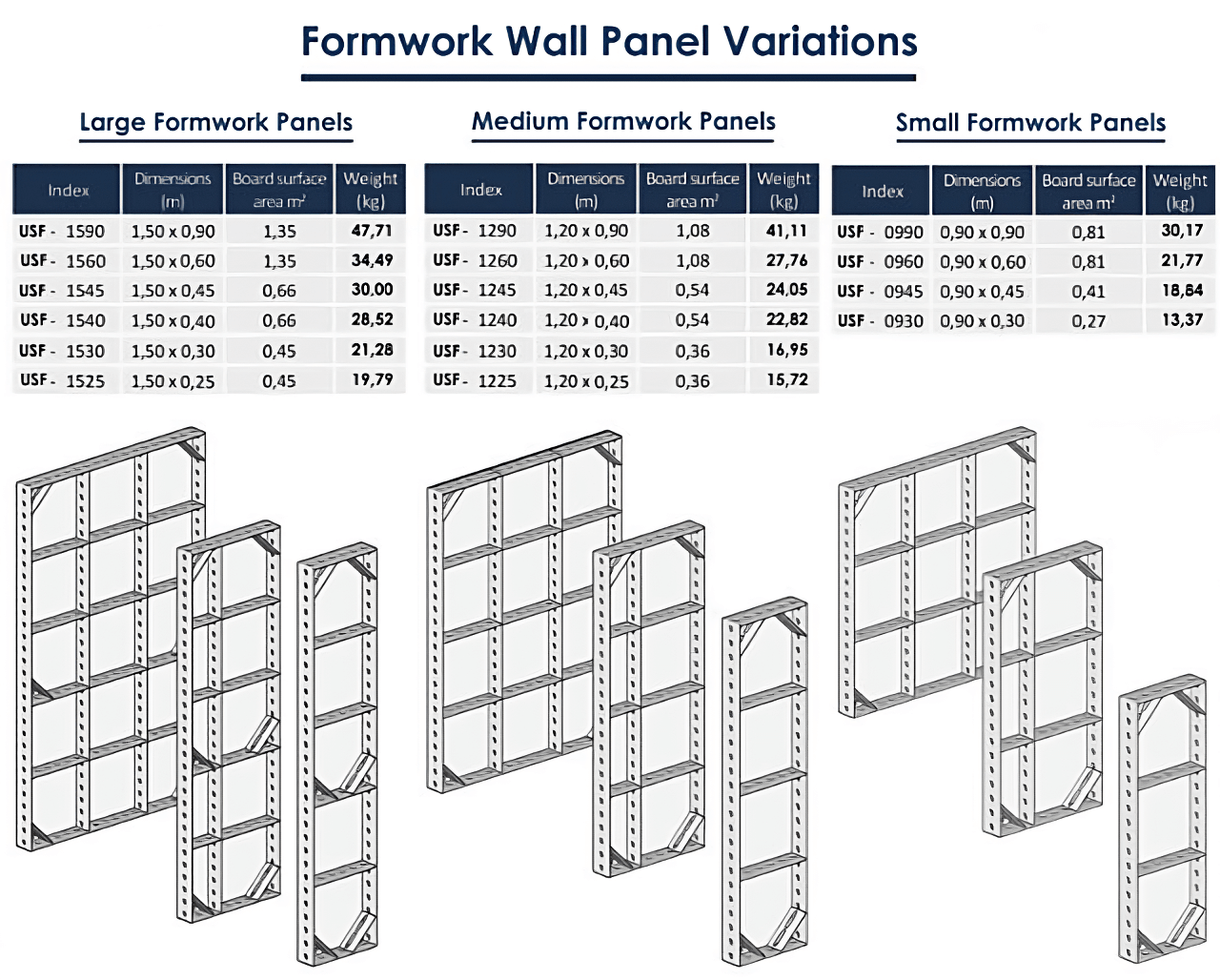

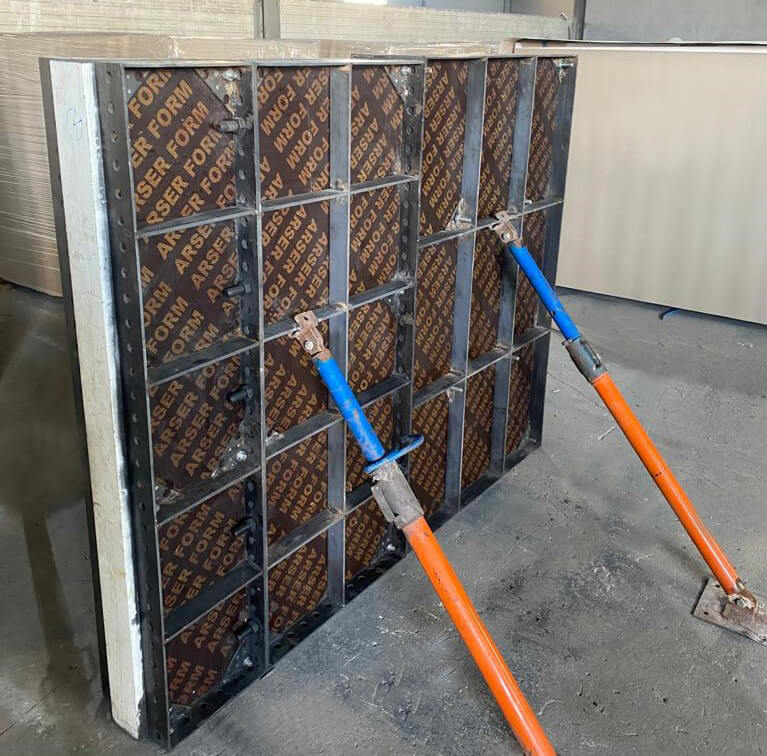

Formworks can be easily used for wall, pole, and basement concreting. Construction of formwork boards is made of steel flat bar, hot dip galvanized and covered with 10/12mm thick waterproof plywood. Spec formwork stands out from other similar products, as our frames are made of 6mm thick steel flat bar and the inner frame is made of 5mm thick flat bar, and special frame construction gives additional stiffness and durability.


Spec Formwork Installation Parts

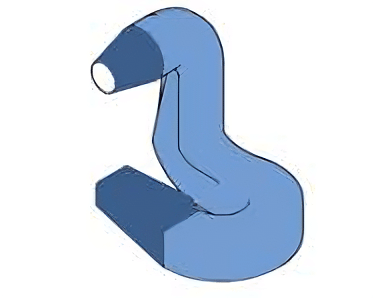

Clamp

Multifunctional board connector. It alligns and stiffens boards

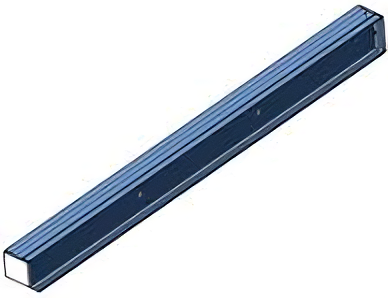

Stiffening Beam

Used for stiffening and aligning boards.

Pin

Used to connect boards to each other.

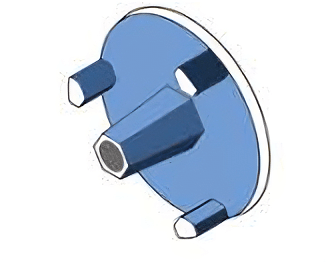

Wing Nut

Used together with a tie rod for the stiffening and alignment of boards.

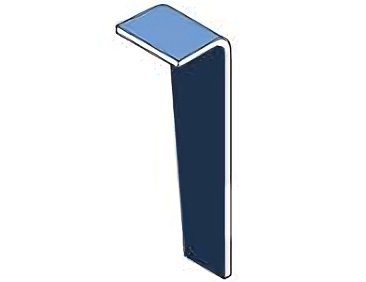

Wedge

Used together with the pin.

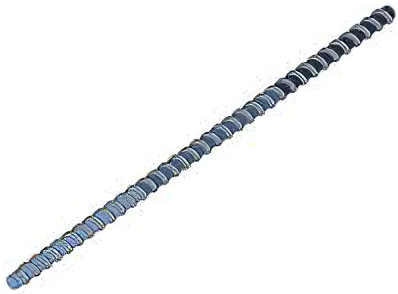

Tie Rod

Threaded rod used to determine the shuttering boards, and the tie material is suitable for welding.

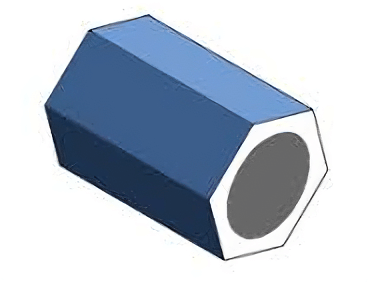

Hexagonal Nut

Used together with the Tie rod in case it is impossible to use the wing nut.

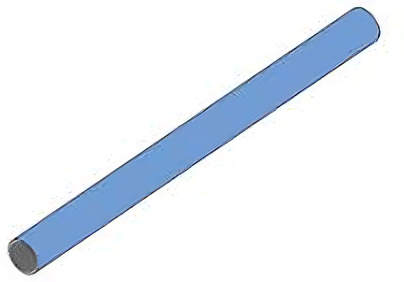

PVC Pipe

Holds distance between boards and facilitates the removal of the tie rod from concrete walls, and is used together with PVC caps.

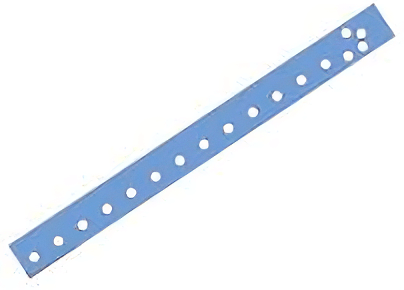

Upper Spacers

Spacers replace tie rods on the upper edges of the boarding.

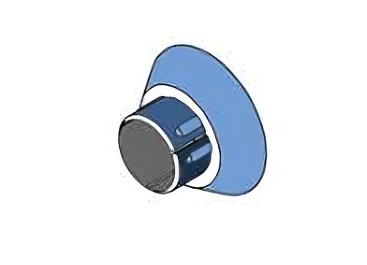

PVC Caps

Saves tie rods from concreting near board surfaces.
